Meeka East Gold Project

Project Overview

Mamba Exploration Limited has defined three main target corridors within the Meeka East Gold Project. The Central Corridor (as defined by Great Boulder Resources) which sits within Bouma Sequence volcaniclastics of the Yaloginda Formation beneath a veneer of hardpan cover and defines the Polelle Syncline. This unit contains the large sediment hosted gold systems hosting Reedys, Burnakura, Bluebird, Paddies Flat, Mulga Bill, Loaded Dog, Gabanintha deposits within a strike extent spanning more than 120km. This trend extends through the 140’ Well Prospect and has been defined by low level fine soil sampling for gold at ppb levels under cover.

Mamba’s Meeka East Project now comprised 39 granted tenements and 7 applications in the highly prospective East limb of the Polelle Syncline totalling just over 142.5 km2 of underexplored prospective rock types that are mostly under cover (not including the 21.5 km2 of ACH-00036323 lodged Aboriginal Cultural Heritage site).

The tenement package contains three main trends that total 56 km of strike and to date some 23 km has been soil sampled, yielding 10km of strike to be drilled in the planned program of 6,000 m of RC. An EIS Grant for 25 holes or a total of $180,000 drilling costs has been approved and granted. It is envisaged that this drilling will start in August-September, or 6 Months into the project , with all the statutory appointments and permitting together with Heritage Clearance being successfully negotiated.

The Meeka East Gold Project consists of 39 Granted and 7 Application Mining Leases prospective sediments which are mostly under cover and not explored by previous companies in the area, mainly Dominion and WMC Resources.

Leases as at 1/6/26 39 granted and 7 application Mining leases, consisting of 7 granted ELs, 32 granted PLs and 7 PLAs.

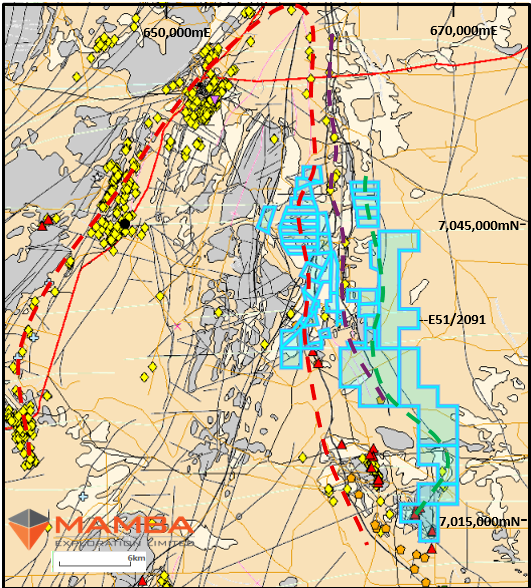

Figure 2 The new extended lease package on regolith map showing the majority is undercover, tan or cream colour with gold occurrences (yellow diamonds) mostly on outcrop shown as grey.

Also visible are the coincidental E-W dolerite dykes with the Clusters of gold occurrences with the major stratigraphic trends as dotted lines.

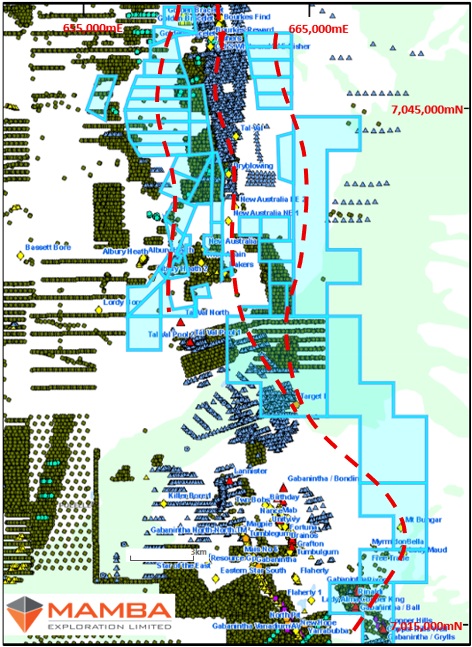

Figure 3 Lease package close up showing the majority is underexplored with circles geochem and rock chip and drilling as triangles with target lineaments in red

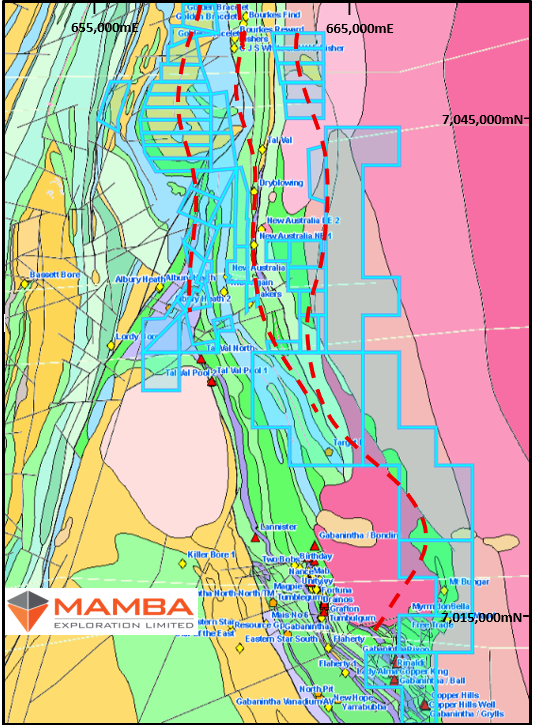

Figure 4 Lease package showing the majority of the leases are on the Yaloginda Formation volcanoclastic target lithology as green and blue beds with cream dash Dolerite Dykes running East West

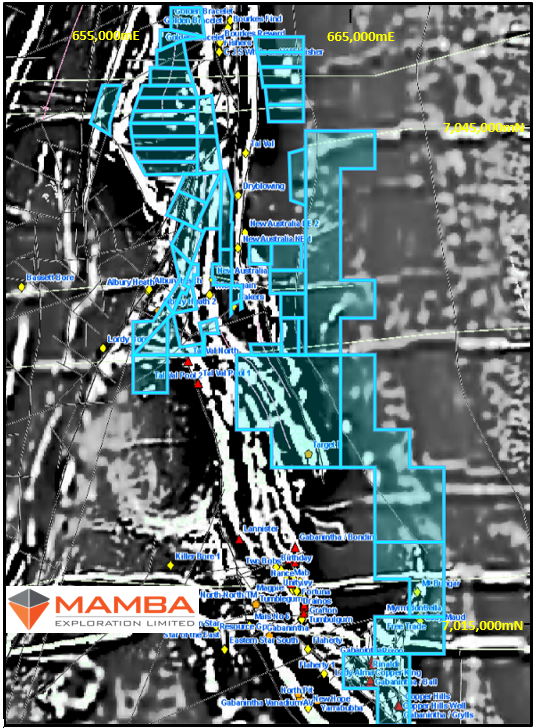

Figure 5 Figure showing the 1VD Magnetics with the lease package showing the majority of the leases are on the Yaloginda Formation volcanoclastic target lithology with very low magnetic response and the dolerite dykes running East West with strong and weak response

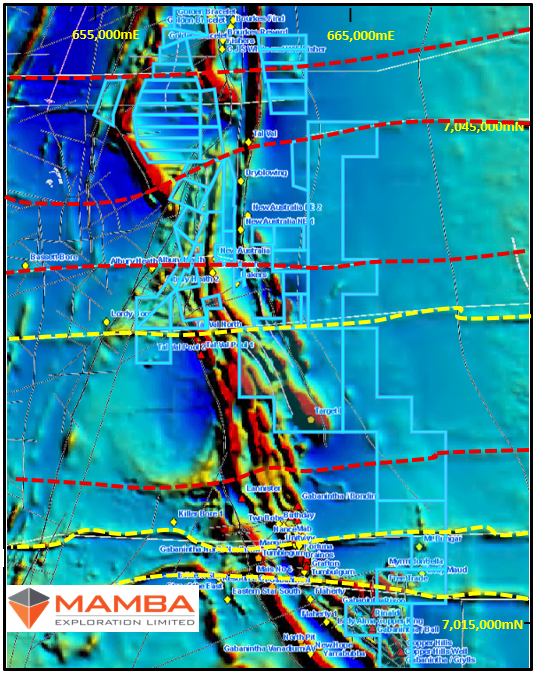

Figure 6 Figure showing the TMI RTP Magnetics with the lease package showing the majority of the leases are on the Yaloginda Formation volcanoclastic target lithology of low magnetic response and the two types of East West dolerites, namely high magnetics intrusive dykes yellow dash and the low response sediment squeeze types in red
